With a dedication to quality and reliability, C-KAS provides high-performance mechanical and industrial products tailored to industry needs.
A permanent magnet is attached to a pivoted switch actuator. As the float/displacer rises following the liquid level, it raises the attraction sleeve into the field of the magnet, which then snaps against the non-magnetic enclosing tube, actuating the switch. The enclosing tube provides a static pressure boundary between the switch mechanism and the process. On a falling level, the float/displacer deactivates the switch

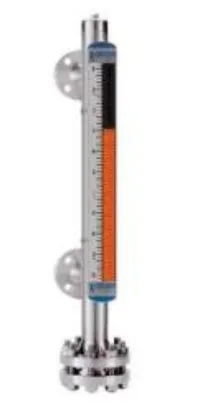

The AtlasTM is our standard, high performance magnetic level indicator. The ATLAS is a single- chamber design, with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models. The product ATLAS magnetic level indicators are produced in a wide range of materials of construction, including exotic alloys and plastics. We also offers one of the most complete selections of process connection types and sizes for level measurement
Magnetrol® side-mounting float switches mount horizontally to any tank or vessel through a threaded or flanged pipe connection. Standard models are normally equipped with a single switch mechanism for high or low level alarm or control applications. Tandem models, with two switch mechanisms, are available for two-stage applications.

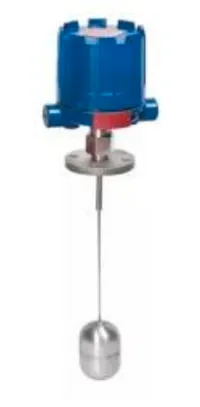

Single Stage Switch T20 units are simple, reliable float switches, designed for top mounting into tanks or vessels. T20 units utilize a single switch mechanism and float. It can be used for virtually any type of open or closed process or storage vessel, with either threaded or flanged type mounting, and actuating depths of up to 48 inches (1219 mm).

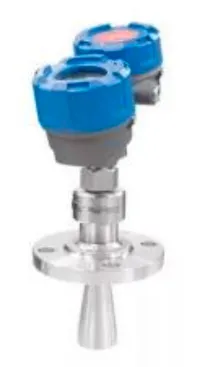

The Pulsar® Model R86 non-contact radar level transmitter is the latest generation of Magnetrol loop-powered, 24 VDC, liquid level transmitters. It has a longer measurement range, circular polarization, advanced diagnostics and is easier to use than most loop-powered radar transmitters.

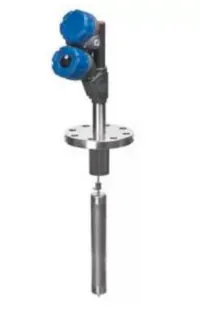

The Digital E3 Modulevel® is an advanced, intrinsically safe two-wire instrument utilizing simple buoyancy principle to detect and convert liquid level changes into a stable output signal. The linkage between the level sensing element and output electronics provides a simple mechanical design and construction. The vertical in-line design of the transmitter results in low instrument weight and simplified installation. The instrument comes in a variety of configurations and pressure ratings for varied applications.
The Pulsar® Model R96 is a loop-powered, 24 VDC, non-contact radar level transmitter. It has a longer measurement range, improved diagnostics and is easier to use than most loop-powered radar transmitters.
Echotel® Model 355 is a loop-powered, non-contact-type ultrasonic transmitter that performs liquid level, volume or open channel flow measurement. HART® communications are offered with a PACTware™ PC program for remote configuration and troubleshooting. The product Ultrasonic non-contact technology

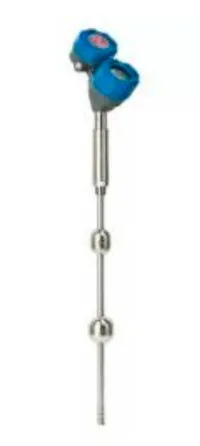

The Jupiter® JM4 liquid level transmitter is a loop-powered 24 VDC liquid-level transmitter and is available as a direct insertion transmitter or as an external mounted transmitter onto a Magnetic Level Indicator. It relies on the position of a magnetic float which is designed precisely for the liquid to be measured. This high-accuracy device can be designed for liquid level and/or liquid-liquid interface measurement. The high safety level of JUPITER is demonstrated by a Safe Failure Fraction > 90 %.
The Tuffy® II buoyancy level switches are float-actuated devices designed for horizontal mounting in a tank or vessel through threaded or flanged pipe connections. The compact size allows for installation in small vessels, while its many features provide a variety of application uses. The single switch mechanism is available in SPDT or DPDT forms on units designed for fixed or adjustable, narrow or wide differential and interface service levels.
Displacer switch operation is based upon simple buoyancy, whereby a spring is loaded with weighted displacers, which are heavier than the liquid. Immersion of the displacers in the liquid results in buoyancy force change, changing the net force acting on the spring. The spring compresses as the buoyancy force increases.
High Pressure Liquid Level Switches are displacer actuated units, utilizing a single switch mechanism for level alarm or control functions. These units are designed for service pressures up to 5000 psig (345 bar) and liquids with specific gravities of 0.40 and above

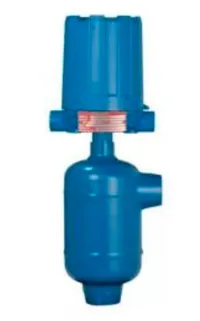

Series B73 and series 75 external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. These float-actuated controls have proven their reliability in process control for decades.

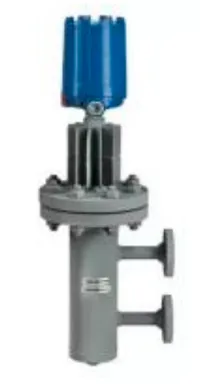

Flanged external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. In hundreds of industrial applications throughout the petroleum refining, petrochemical production and power generation markets, these switches have demonstrated their worth through reliable and repeatable service

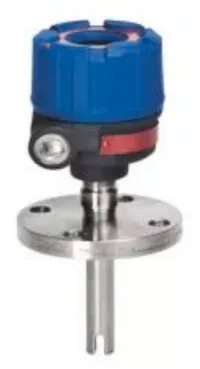

Increasing demands for compliance with safety systems and overfill protection have mandated more reliable point level measurement. Echotel® Models 961 and 962 ultrasonic level switches meet these demands with advanced transducer designs, extensive hazardous location approvals, and a new self- test technology.

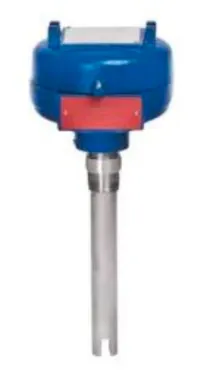

Echotel® Model 910 ultrasonic level switches utilize ultrasonic contact technology for measuring level in clean liquid applications. These integrally mounted level switches offer either a 8-amp DPDT gold flash relay or a 5-amp DPDT hermetically sealed relay. The 910 level switch is often installed into seal pots found in refineries and chemical plants.

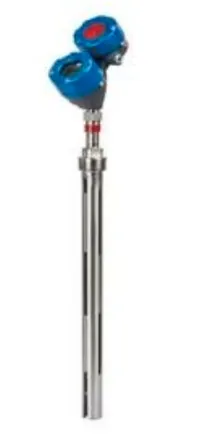

The Eclipse® Model 706 high performance transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven technology of guided wave radar (GWR). Encompassing a number of significant engineering accomplishments, this leading edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies
